二叉树

SyEic_L MVP++
  2025-10-02 17:59:28 2025-10-02 17:59:28 Created   2025-10-02 17:59:28 2025-10-02 17:59:28 Updated    1.7k Words  8 Mins

遍历

递归

1
2
3
4
5
6
7
void recur(Node* head){
    if (head == NULL){
        return ;
    }
    recur(head->left);
    recur(head->right);
}

非递归

先序遍历(深度优先)

  1. 从栈中弹出一个节点cur
  2. 打印（处理）cur
  3. 先右后左加入栈（如果存在）
  4. 循环1、2、3
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
void preOrderUnrecur(Node* head) {
    if (head != NULL) {
        stack<Node*> st;
        st.push(head);
        while (!st.empty()) {
            head = st.top();
            st.pop();
            cout << head->value << endl;
            if (head->right != NULL) {
                st.push(head->right);
            }
            if (head->left != NULL) {
                st.push(head->left);
            }
        }
    }
}

中序遍历

  1. 每棵子树整个左边界进栈
  2. 依次弹出并打印（处理）
  3. 如果有右树重复1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
void inOrderUnRecur(Node* head){
    if (head != NULL){
        stack<Node*> st;
        while(!st.empty() || head != NULL){
            if (head != NULL){
                st.push(head);
                head = head->left;
            }
            else{
                head = st.top();
                st.pop();
                cout << head-> value >> endl;
                head = head-> right;
            }
        }
    }
}

后序遍历

  1. 创建一个收集栈
  2. 从原始栈中弹出cur
  3. cur进收集栈
  4. 先左后右进原始栈
  5. 循环2、3、4
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
void posOrderUnrecur(Node* head){
    if (head != NULL){
        stack<Node*> s1;
        stack<Node*> s2;
        s1.push(head);
        while(!s1.empty()){
            head = s1.top();
            s1.pop();
            s2.push(head);
            if (head->left != NULL){
                s1.push(head->left);
            }
            if (head->right != NULL){
                s1.push(head->right);
            }
        }
        while(!s2.empty()){
            cout << s2.top() << endl;
            s2.pop();
        }
    }
}

广度优先遍历

  1. 队列弹出cur
  2. 先左后右加入队列
  3. 循环1、2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
void BFS(Node* head){
    if (head != NULL){
        queue<Node*> q;
        q.enqueue(head);
        while(!q.empty()){
            Node* head = q.dequeue();
            cout << head->value << endl;
            if (head->left != NULL){
                q.enqueue(head->left);
            }
            if (head->right != NULL){
                q.enqueue(head->right);
            }
        }
    }
}

搜索二叉树

每一棵左子树的值都比当前节点小，右子树的值都比当前节点大

判断

通过中序遍历比较

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
bool isBST(Node* head){
    if (head != NULL){
        int preValue = INT_MIN;
        stack<Node*> st;
        while(!st.empty() || head != NULL){
            if (head != NULL){
                st.push(head);
                head = head->left;
            }
            else{
                head = st.top();
                st.pop();
                if (head->value <= preValue){
                    return false;
                }
                else{
                    preValue = head->value;
                }
                head = head-> right;
            }
        }
    }
}

完全二叉树

除最后一层都是满的，最后一层就算不满也是从左到右依次变满

判断

  • 广度优先遍历
  • 任意节点如果有右子无左子 false
  • 遇到第一个左右子节点不全，则剩余节点必须都是叶节点
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
bool isCBT(Node* head){
    if (head == NULL){
        return true;
    }
    Queue<Node*> q;
    bool leaf = false;	//判断是否遇到过子节点不全的情况
    Node* l = NULL;
    Node* r = NULL;
    q.enqueue(head);
    while (!q.empty()){
        head = q.dequeue();
        l = head->left;
        r = head->right;
        if ((leaf && (l != NULL || r != NULL)) || (l == NULL && r != NULL)){
            return false;
        }
        if (l != NULL){
            q.enqueue(l);
        }
        if (r != NULL){
            q.enqueue(r);
        }
        if (l == NULL || r == NULL){
            leaf = true;
        }
    }
    return true;
}

满二叉树

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
bool isFBT(Node* head){
    if (head == NULL){
        return true;
    }
    Info data = process(head);
    return data.node == (1 << data.heigth - 1);
}

class Info{
    int height;
    int nodes;
    public:
    Info(int h, int n){
        height = h;
        nodes = n;
    }
}

Info process(Node* x){
    if (x = NULL){
        return new Info(0, 0)
    }
    Info leftData = process(x.left);
    Info rightData = process(x.right);
    int height = max(leftData.height, rightData.height) + 1;
    int nodes = leftData.nodes + rightDatta.nodes + 1;
    return new Info(height, nodes);
}

平衡二叉树

对于任何一个子树，其左数和右树的高度差不超过1

判断

  • 左子树是平衡
  • 右子树是平衡
  • 左右子树高度差不超过1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
bool isBalanced(Node* head){
    return process(head).isBalanced;
}

class ReturnType{
    bool isBalanced;
    int height;
	public:
    ReturnType(bool isB, int hei){
        isBalanced = isB;
        height = hei;
    }
};

ReturnType process(Node* x){
    if (x == NULL){
        return new ReturnType(true, 0);
    }
    ReturnType leftData = process(x->left);
    ReturnType rightData = process(x->right);
    int height = max(leftData.height, rightData.height) + 1;
    bool isBalanced = leftData.isBalanced && rightData.balanced && abs(leftData.height - rightData.height) <= 1;
    return new RetunType(isBalanced, height);
}

树形DP

  • 向左子树要需要的内容
  • 向右子树要需要的内容
  • 得出当前节点的相关内容

题目

最低公共祖先节点

给定两个二叉树的节点node1和node2，找到他们的最低公共祖先节点

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
Node* lca(Node* head, Node* o1, Node* o2){
    unordered_map<Node*, Node*> fatherMap;
    fatherMap.enplace(head, head);
    process(head, fatherMap);
    unordered_set<Node*> set1;

    Node* cur = o1;
    while (cur != fatherMap.at(cur)){
        set1.insert(cur);
        cur = fatherMap.at(cur);
    }
    set1.insert(head);

    Node* cur = o2;
    while (cur != fatherMap.at(cur)){
        if (set1.find(cur) != set1.end()){
            return cur;
        }
        else{
            cur = fatherMap.at(cur);
        }
    }
    return nullptr;
}

void process(Node* head, unordered_map<Node*, Node*> fatherMap){
    if (head == NULL){
        return ;
    }
    fatherMap.enplace(head->left, head);
    fatherMap.enplace(head->right, head);
    process(head->left, fatherMap);
    process(head->right, fatherMap);
}
1
2
3
4
5
6
7
8
9
10
11
Node* lowestAncestor(Node* head, Node* o1, Node* o2){
    if (head == NULL || head == o1 || head == o2){
        return head;
    }
    Node* left = lowestAncestor(head->left, o1, o2);
    Node* right = lowestAncestor(head->right, o1, o2);
    if (left != NULL && right != NULL){
        return head;
    }
    return left != NULL ? left : right;
}

后继节点

求中序遍历中该节点的下一个节点

  1. 常规二叉树通过中序遍历列表查找
  2. 带有父节点的树直接查找
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
Node* getSuccessorNode(Node* node){
    if (node == NULL){
        return node;
    }
    if (node->right != NULL){
        return getLeftMost(node->right);	//返回最左子节点
    }
    else{	//无右子树
        Node* parent = node->parent;
        while (parent != NULL && parent->left != node){
            nmode = parent;
            parent = node->parent;
        }
        return parent;
    }
}

Node* getLeftMost(Node* node){
    if (node == NULL){
        return node;
    }
    while (node->left != NULL){
        node = node->left;
    }
    return node;
}

序列化和反序列化

  • 序列化：将内存中一棵树变成字符串形式
  • 反序列化：将字符串形式还原为内存中的树

中序序列化

1
2
3
4
5
6
7
8
9
10
// #表示空 _表示分隔符
string serialByPre(Node* head){
    if (head == NULL){
        return "#_";
    }
    string res = head->value + "_";
    res += serialByPre(head->left);
    res += serialByPre(head->right);
    return res;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Node* reconByPreString(string preStr){
    stringstream ss(preStr);
    string token;
    queue<string> q;
    while (getline(ss, token, '_')){
        q.enqueue(token);
    }
    return reconPreOrder(q);
}

Node* reconPreOrder(queue<string> q){
    string value = queue.dequeue();
    if (value.equlas("#")){
        return NULL;
    }
    Node* head = new Node(stoi(value));
    head->left = reconPreOrder(q);
    head->right = reconPreOrder(q);
    return head;
}

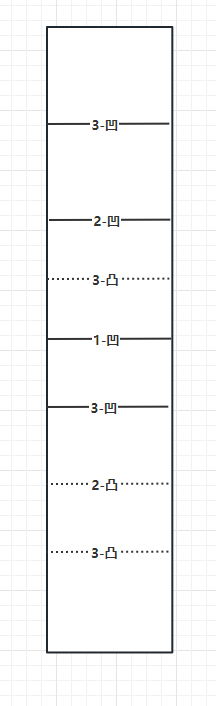

google折纸问题

将一段纸条放在桌上，然后从纸条下边向上方对折1次，压出折痕后展开，此时折痕是凹下去的（称为凹折痕），即折痕凸起的方向指向纸条的背面。如果从纸条的下边向上方连续对折两次，压出折痕后展开，此时有三条折痕，从上到下依次是（凹折痕 -> 凹折痕 -> 凸折痕）。
给定一个参数N，代表纸条从下向上连续对折N次。从上到下打印所有折痕的方向。

google折纸

1
2
3
4
5
6
7
8
9
10
11
12
13
void printAllFolds(int N){
    printProcess(1, N, true);
}

//i是节点的层数，N是一共的层数， down == true 凹; down == false 凸
void printProcess(int i, int N, bool down){
    if (i > n){
        return;
    }
    printProcess(i+1, N, true);
    cout << (down? "凹" : "凸") << endl;
    printProcess(i+1, N, false);
}
